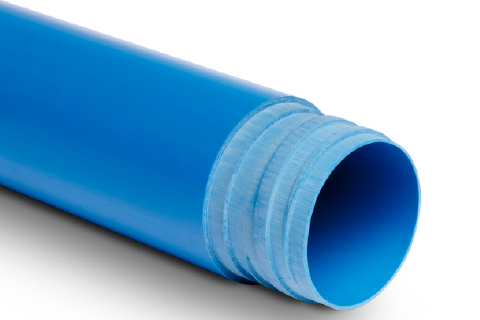

Threaded pipes
PROMAFORSOVEMA threaded pipes are PVC drilling pipes available in four thread types: Straight (FD), Rapid (FR), XPRESS (FX) and Gas (GAZ). Available from DN 27 to DN 376 in 3 metre lengths, they can be delivered quickly from our permanent stock.
Technical specifications
| Nominal Diameter |
Internal Diameter |
External Diameter |
Wall thickness |
Length | Resistance | Approx. weight |
Pipes per pallet |
Connection* | |
|---|---|---|---|---|---|---|---|---|---|
| DN | (inch) | (mm) | (mm) | (mm) | (kg/m) | (no. of pipes) | |||
| 27 | 1 | 27 | 34 | 3.5 | 3 | 10 | 0.48 | 310 | GAZ |
| 41 | 1.5 | 41 | 48 | 3.5 | 3 | 16 | 0.7 | 387 | GAZ |
| 50.2 | 2 | 50.2 | 60 | 4.9 | 3 | 20 | 1.21 | 245 | FD - FX |
| 50.8 | 2 | 50.8 | 60 | 4.6 | 3 | 30 | 1.13 | 255 | FR |
| 64 | 2.5 | 64 | 75 | 5.5 | 3 | 30 | 1.62 | 160 | FX |
| 80 | 3 | 80 | 90 | 5 | 3 | 10 | 2.03 | 104 | FX |
| 104 | 4 | 104 | 114 | 5 | 3 | 6 | 2.52 | 60 | FD |
| 110 | 4 | 110 | 125 | 7.5 | 3 | 17 | 3.93 | 51 | FD |
| 112 | 4.5 | 112 | 125 | 6.5 | 3 | 10 | 3.53 | 51 | FD |
| 126 | 5 | 126 | 140 | 7 | 3 | 9 | 4.28 | 45 | FD |
| 150 | 6 | 150 | 165 | 7.5 | 3 | 7 | 5.29 | 28 | FD |
| 163 | 6.5 | 163 | 180 | 8.5 | 3 | 8 | 6.49 | 22 | FD |
| 178 | 7 | 178 | 195 | 8.5 | 3 | 6 | 7.22 | 18 | FD |
| 179 | 7 | 179 | 200 | 10.5 | 3 | 9 | 9.03 | 18 | FD |
| 203 | 8 | 203 | 225 | 11 | 3 | 9 | 10.92 | 14 | FD |
| 226 | 9 | 226 | 250 | 12 | 3 | 8 | 13.4 | 11 | FD |
| 250 | 10 | 250 | 280 | 15 | 3 | 8 | 18.41 | 7 | FD |
| 285 | 12 | 285 | 315 | 15 | 3 | 8.5 | 20.32 | 5 | FD |
| 362 | 14 | 362 | 400 | 19 | 4 | 8.5 | 34.8 | 5 | FD |
| 376 | 14 | 376 | 400 | 12 | 4 | 3 | 22.5 | 6 | FD |
* FD: Straight Thread — FR: Rapid Thread — FX: XPRESS Thread — GAZ: Gas Thread
FD: Straight Thread — FR: Rapid Thread — FX: XPRESS Thread — GAZ: Gas Thread
Other dimensions up to 600 mm diameter available on request.
XPRESS thread
PROMAFORSOVEMA exclusively offers Xpress threads for its PVC drilling pipes. An ideal compromise between practicality and resistance, providing considerable time savings on site.
- Mechanical resistance
- Time saving
- Ergonomics
- Available from stock
3 dimensions available from stock: 60 mm — 75 mm — 90 mm
Need equipment tailored to your project?
PROMAFORSOVEMA holds a substantial stock of threaded pipes across all of its 4 branches throughout France. Our technical teams are at your disposal to guide you towards the thread type and diameter best suited to your project.
Contact us now for a customised quote, to check stock availability or to receive technical advice.
