HDPE pipes
PROMAFORSOVEMA HDPE PE100 pipes are manufactured at our Vauvert (30) factory and designed for use in contaminated soils where the material must resist corrosion and pollutant action. Used in piezometry, environmental monitoring, contaminated site investigation and aquifer mapping, these pipes are available quickly from our stock in both plain and slotted versions.

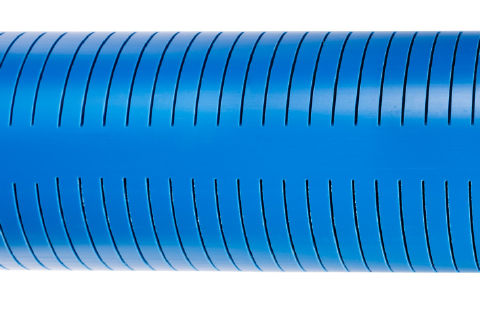

Plain and slotted pipes
Diameter from 60 to 125 mm, length 1, 2 and 3 metres. HDPE PE100 pipe wall thicknesses and diameters comply with UNI EN 12201 standard. Slotted pipes with 1 mm slots held in stock. Other dimensions available on request.
| Nominal Diameter |
Internal Diameter |
External Diameter |
Wall thickness |
Length | Screen | Approx. weight |
Colour | Connection | |
|---|---|---|---|---|---|---|---|---|---|
| DN | (inch) | (mm) | (mm) | (mm) | (kg/m) | ||||
| 25 | 1 | 25 | 32 | 3.5 | 1 | 0.5 - 1 | White | FD | |
| 25 | 1 | 25 | 32 | 3.5 | 1 | 0.5 - 1 | Black | FD | |
| 51 | 2 | 51 | 63 | 5.8 | 1 - 3 | 0.5 - 1 | 1.1 | Black | FD |
| 61 | 2.5 | 61 | 75 | 6.9 | 1 - 3 | 0.5 - 1 | 1.5 | Black | FD |
| 79 | 3 | 79 | 90 | 5.4 | 1 - 3 | 0.5 - 1 | 1.5 | Black | FD |
| 97 | 4 | 97 | 110 | 6.5 | 1 - 3 | 0.5 - 1 | 2.2 | Black | FD |
| 110 | 4.5 | 110 | 125 | 7.4 | 1 - 3 | 0.5 - 1 | 2.6 | Black | FD |
HDPE PIEZAIR pipe
HDPE PIEZAIR pipes, compliant with EU standards, are suitable for water and gas transport and lend themselves to multiple applications given their particular characteristics: high impact resistance (water hammer), high corrosion resistance, good mechanical resistance at low temperatures (0°C), non-toxic nature, ease of joining (weldable by fusion or threading) and lightweight. Screen options available on 1 m, 0.60 m or plain pipe.
| Parameter | Value |
|---|---|
| External diameter | 32 mm +/-0.2 mm |
| Internal diameter | 25 mm +/-0.2 mm |
| Wall thickness | 3.5 mm |
| Weight | 2800 g/m |
| Pipe length | 1 metre |
| Slot | 0.3 mm |
| Distance between screens | 5 mm |
| Number of rows | 3 |
Need HDPE pipes for your project?
PROMAFORSOVEMA holds a permanent stock of plain and slotted HDPE pipes, available from our 4 branches throughout France. Contact our technical teams for a customised quote, to check diameter availability or to request specific dimensions.
