PVC drains
PROMAFORSOVEMA offers a complete range of drain pipes for drilling, available in PVC and HDPE with various diameters from DN 45 to DN 376. Manufactured directly at our Vauvert (Gard) factory, our screens can be added on request to meet the technical requirements of each project. Pipes available quickly from our permanent stock.

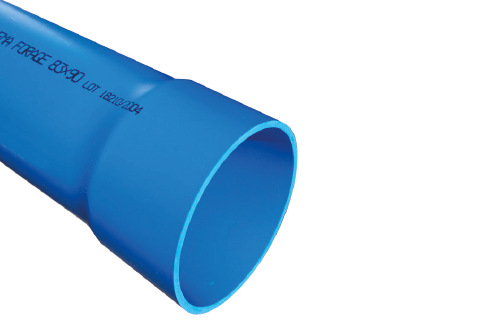

PVC / HDPE threaded male-female drains with half-wall thickness and PVC glue-on drains
Our drain range comes in two connection types: threaded male-female with half-wall thickness or glue-on. Various screen opening types are available: 1/2, 2/3, 4/4 and 120°. See the table below for the dimensions and characteristics of each reference.
| Standard drain |
Nominal Diameter | Internal Diameter |
External Diameter |
Wall thickness |
Bell-end Ext. Diameter |
Length (ML) |
Resistance (Bars) |
Approx. weight |
Pipes per pallet |
|
|---|---|---|---|---|---|---|---|---|---|---|
| DN | (inch) | (mm) | (mm) | (mm) | (mm) | (kg/m) | (no. of pipes) | |||
| 3 slots of 1mm | 45 | 1.5 | 45 | 50 | 2.5 | 55 | 3 | 9 | 0.54 | 344 |
| 3 slots of 1mm | 57 | 2 | 57 | 63 | 3 | 69 | 3 | 10 | 0.812 | 224 |
| 3 slots of 1mm | 69 | 2.5 | 69 | 75 | 3 | 81 | 3 | 6 | 0.96 | 160 |
| 3 slots of 1mm | 83 | 3 | 83 | 90 | 3.5 | 97 | 3 | 4 | 1.31 | 104 |
| 3 slots of 1mm | 105 | 4 | 105 | 113 | 4 | 124 | 4 | 3 | 2.56 | 68 |
| 3 slots of 1mm | 113 | 4.5 | 113 | 125 | 6 | 137 | 4 | 8 | 4.37 | 51 |
| 3 slots of 1mm | 115 | 4.5 | 115 | 125 | 5 | 135 | 4 | 5 | 3.62 | 51 |
| 3 slots of 1mm | 130 | 5 | 130 | 140 | 5 | 150 | 4 | 3 | 4.08 | 45 |
| 3 slots of 1mm | 157 | 6 | 157 | 167 | 5 | 177 | 4 | 2 | 3.73 | 28 |
| 3 slots of 1mm | 165.6 | 6.5 | 166 | 175 | 4.7 | 185 | 4 | 1.5 | 3.57 | 22 |
| 3 slots of 1mm | 167 | 6.5 | 167 | 180 | 6.5 | 193 | 4 | 4 | 5.36 | 22 |
| 3 slots of 1mm | 184 | 7 | 184 | 200 | 8 | 216 | 4 | 5 | 7.15 | 18 |
| 3 slots of 1mm | 190 | 7 | 190 | 200 | 5 | 210 | 4 | 3 | 4.43 | 18 |
| 3 slots of 1mm | 238.2 | 9 | 238.2 | 250 | 5.9 | 265 | 6 | 1 | 6.9 | 11 |
| 3 slots of 1mm | 376 | 14 | 376 | 400 | 12 | 428 | 4 | 1 | 22.5 | 9 |
Screens and other dimensions available on request.
Need drain pipes for your project?
PROMAFORSOVEMA holds a permanent stock of PVC and HDPE drain pipes, available from our 4 branches throughout France. Contact our technical teams for a customised quote, to check diameter availability or to request custom screens suited to your project.
