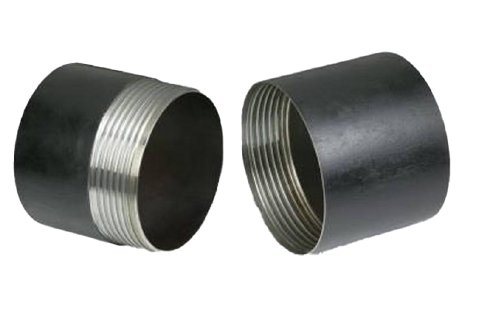

ODEX tubes
The ODEX-type tubes distributed by PROMAFORSOVEMA enable simultaneous casing and drilling in unstable ground. Available as expendable tubes assembled by smooth weld-on sleeves, with N80 expendable shoe or hardened shoe. Permanently in stock at our branches for rapid availability.
ODEX-type tube technical specifications
| Type | Tube ext. Ø (mm) | Wall thickness (mm) | Useful length | Pitch (mm) |
|---|---|---|---|---|
| ODEX 90 | 114.3 | 6.3 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 115 | 139.7 | 6.3 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 127 | 139.7 | 6.3 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 140 | 168.3 | 6.3 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 165 | 193.7 | 6.3 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 190 | 219.1 | 8 | 1 m - 1.50 m - 2 m - 3 m | 8 |
| ODEX 240 | 273.0 | 9.5 | 1 m - 1.50 m - 2 m - 3 m | 8 |
Need ODEX-type tubes for your project?
Contact one of our 4 branches across France for a customised quote, to check availability of the diameters and lengths suited to your drilling or for technical advice on shoe selection.
