Backhammer
In the event of jamming during the drilling process, the Backhammer reverse hammer saves you time and reduces costs. Installed between the rotary head and the drill string, it produces reverse percussion and vibration effects to resolve the jamming problem. The equipment is available from stock.

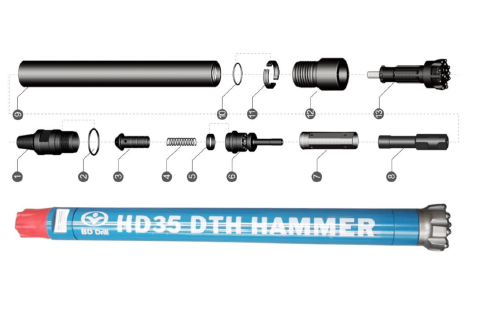

Made up of five parts — pistons, casing, chuck, base and side pin — the reverse hammer has a very simple structure that is easy to maintain: simply keep it clean and protect the connection area.
Backhammer technical characteristics
| Product name | Air pressure | Thread | Total length | Diameter | Weight |
|---|---|---|---|---|---|
| 6-8" back hammer | 8-15 bar | API 3 1/2 reg | 636 mm | 192 mm | 71.5 Kg |
| 8-12" back hammer | 8-15 bar | API 3 1/2 reg | 691 mm | 273 mm | 130.5 Kg |
Contact us for more dimensions.
Need a reverse hammer for your project?
PROMAFORSOVEMA holds the Backhammer in stock at its 4 branches throughout France. Contact our technical teams for a customised quote, to check availability of the model suited to your drill string or for advice on its installation.
