ODEX system

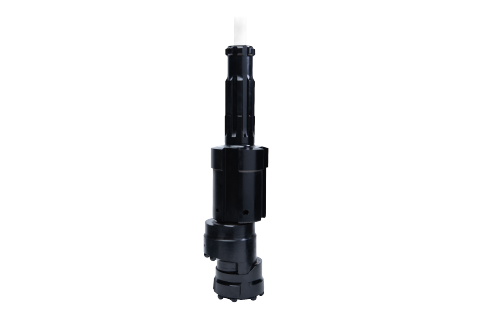

The ODEX system (with and without collar) distributed by PROMAFORSOVEMA is an eccentric casing system designed for rock formations and unstable ground. It enables simultaneous casing and drilling installation through its eccentric mechanism. Available in stock at our branches for rapid deployment on your projects.
ODEX system technical specifications
| Models | Tube ext. Ø (mm) |
Wall thickness (mm) |
Max. guide Ø (mm) |
Reamed Ø (mm) |
Max. bit ext. Ø (mm) |
Bit type | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| ODEX90 | 114.3 | 6.3 | 99 | 125 | 90 | DHD3.5 | 13.1 |
| ODEX115 | 139.7 | 6.3 | 123.5 | 155 | 115 | DHD340(TH4)/SD4/QL40 | 27.5 |
| ODEX127 | 139.7 | 6.3 | 123.5 | 155 | 115 | DHD340(TH4)/SD4/QL40 | 27.5 |
| ODEX140 | 173 | 8 | 151 | 185 | 141 | DHD350(TH5)/SD5/QL50 | 35.7 |
| ODEX165 | 193.7 | 6.6 | 176 | 206 | 165 | DHD360(TH6)/SD6/QL60 | 60.7 |
| ODEX190 | 219 | 7 | 205 | 237 | 190 | DHD360(TH6)/SD6/QL60 | 76.3 |
| ODEX240 | 285 | 12 | 255 | 305 | 240 | DHD380/SD8/QL80 | 136.2 |
Need the ODEX system for your project?
PROMAFORSOVEMA holds the ODEX system in stock at its 4 branches across France. Contact our technical teams for a quote, to check availability of the model suited to your needs or for advice on the optimal configuration for your ground conditions.
